High and low pressure manifold

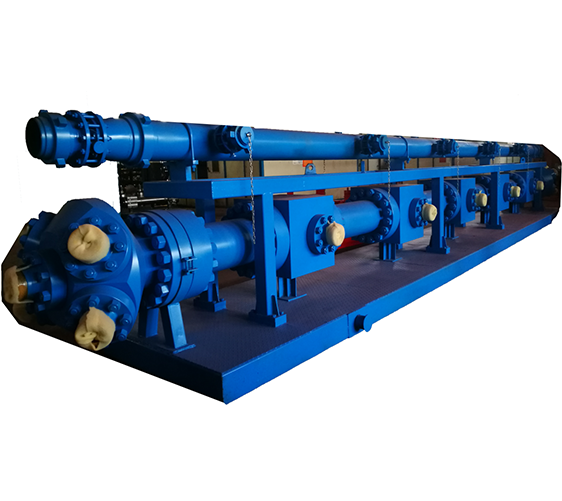

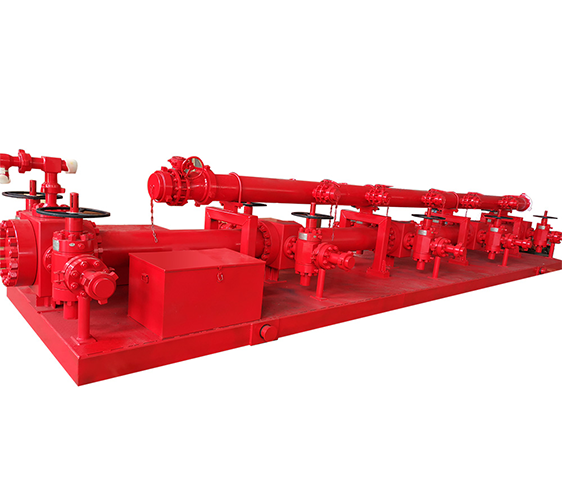

High and low pressure manifold
Product description
High and low pressure manifolds are important equipment for fracturing operations. Its main structure includes fracturing head, cross, flange nipple and other parts. The parts are sealed by flange metal gasket to meet the operation requirements of various fracturing media. High and low pressure manifold is used for fracturing wellhead, connecting fracturing truck and wellhead fracturing head.It adopts integrated design to save the connection time of fracturing pipeline and the space occupied by fracturing equipment.
Basic parameters
Nominal Bore: 2-1/16 "~ 4-1/16"
Working Pressure: 2000Psi ~ 20000Psi
Temperature Class: P.U (-29 ℃ ~ 121 ℃)
Material Class: EE-HH
Product Specification Level: PSL3 ～ PSL4
Performance Rate: PR1~PR2
Working medium: oil, natural gas, mud, gas containing H2S and CO2
>
