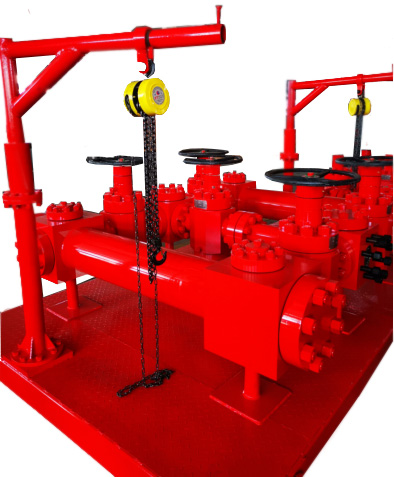

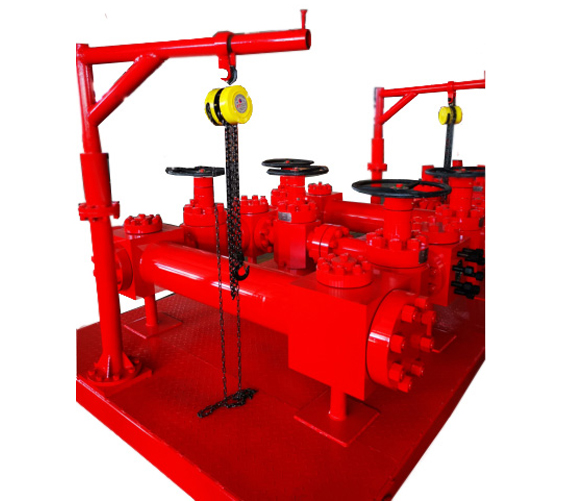

Chip collection manifold
Chip collection manifold
Product description
Chip collection manifold is an important equipment for filtering and recycling fracturing fluid after layered fracturing. Its main structure includes RAM valve, sand removal cylinder, flange nipple and other parts. The parts are sealed by flange metal gasket to meet the operation requirements of various fracturing media recovery. For desanding manifold,fracturing fluid passes through the filter, and large particles are filtered by the filter.A forward filtering channel, a reverse flushing channel and a blowoff DC channel are designed. It can realize reverse flushing without removing the filter cartridge. Desanding manifold has simple operation and good sealing performance.
Basic parameters
Nominal Bore: 2-1/16 "~ 4-1/16"
Working Pressure: 2000Psi ~ 20000Psi
Temperature Class: P.U (-29 ℃ ~ 121 ℃)
Material Class: EE-HH
Product Specification Level: PSL3 ～ PSL4
Performance Rate: PR1~PR2
Working medium: oil, natural gas, mud, gas containing H2S and CO2
>
