Fracturing manifold

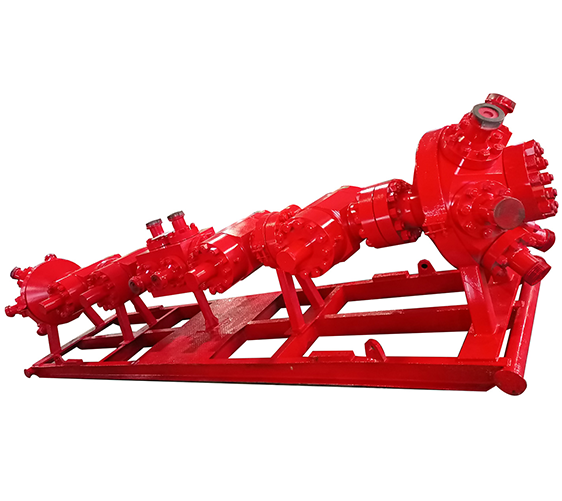

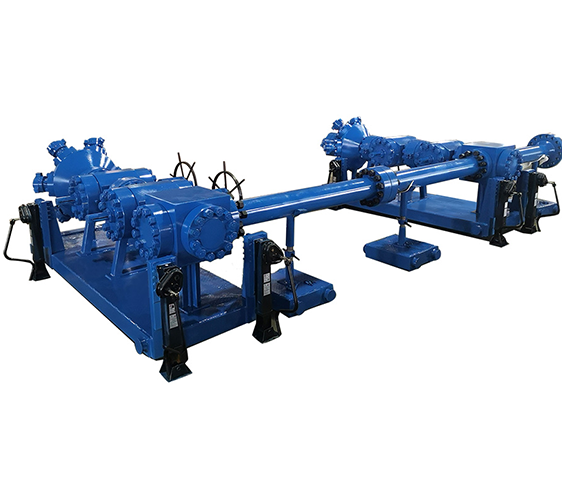

Fracturing manifold
Product description
Fracturing manifold is a necessary equipment for outputting fracturing high pressure. Its main structure includes large bore size gate valve, fracturing head, flange nipple and other parts. The parts are sealed by flange metal gasket to meet the fracturing operation requirements of various fracturing media. The fracturing manifold connects the high-pressure output ends of multiple fracturing trucks through high-pressure elbows and high-pressure tees, and is connected to the wellhead by one or more output ports through high-pressure pipelines.It has simple operation and good sealing performance.
Basic parameters
Nominal Bore: 4-1/16 "~ 7-1/16"
Working Pressure: 2000Psi ~ 20000Psi
Temperature Class: P.U (-29 ℃ ~ 121 ℃)
Material Class: EE-HH
Product Specification Level: PSL3 ～ PSL4
Performance Rate: PR1~PR2
Working medium: oil, natural gas, mud, gas containing H2S and CO2
>
