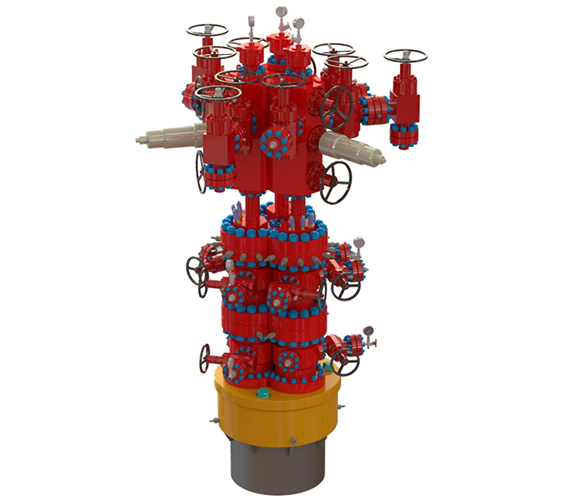

Single conductor triple wells wellhead is a wellhead equipment for drilling three production tubing in a conduit well. It adopts the compact wellhead technology and uses the tubing in three completion wells to drill and produce different oil layers in different directions. Main structure of the single conductor triple wells wellhead is to put three tubing strings in different directions into the same conduit, and use three tubing hangers to hang three production tubing strings respectively. The upper Christmas tree also adopts three split angle type, with compact structure and good sealing performance. It is mainly used in areas where the installation space of wellhead is limited or offshore petroleum platforms.

Working Pressure: 2000psi~5000psi
Temperature Class: P.U (-29 ℃ ~ 121 ℃)
Material Class:AA~HH
Product Specification Level: PSL1~PSL4
Performance Rate: PR1 ~ PR2
Working medium: oil, natural gas, mud, gas containing H2S and CO2
